Complete Tripo-Blender Plugin Tutorial: Transform Images to 3D Models in Minutes

Are you ready to revolutionize your 3D modeling workflow? The Tripo AI Blender Plugin seamlessly integrates powerful AI 3D model generation capabilities directly into Blender, allowing you to create detailed 3D assets in seconds from text descriptions or images. This comprehensive guide will walk you through everything from installation to advanced techniques, helping you master this game-changing tool.

What You'll Learn

  • How to properly install and configure the Tripo-Blender Plugin
  • Creating models using both text-to-3D and image to 3D methods
  • Advanced tips for getting the best results
  • Post-processing techniques to refine your AI-generated models

Installation: Getting Started with Tripo in Blender

Installing the Tripo AI Blender Plugin is straightforward, but following the correct steps is crucial for trouble-free operation.

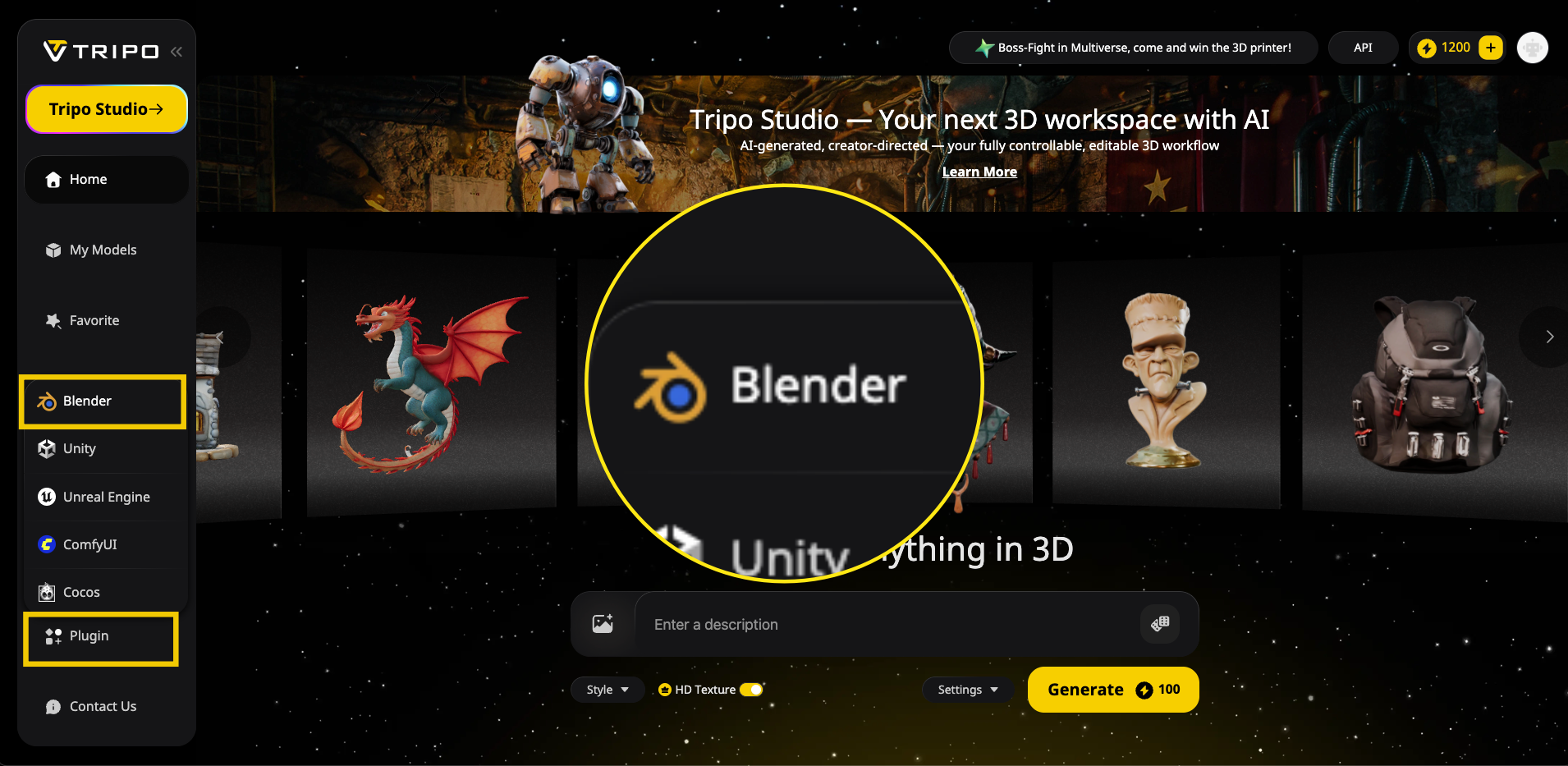

Step 1: Download the Plugin

  1. Visit the Tripo AI website
  2. Hover over the "Plugin" section in the bottom left corner
  3. Select "Blender" from the dropdown menu to start the download

Step 2: Install in Blender

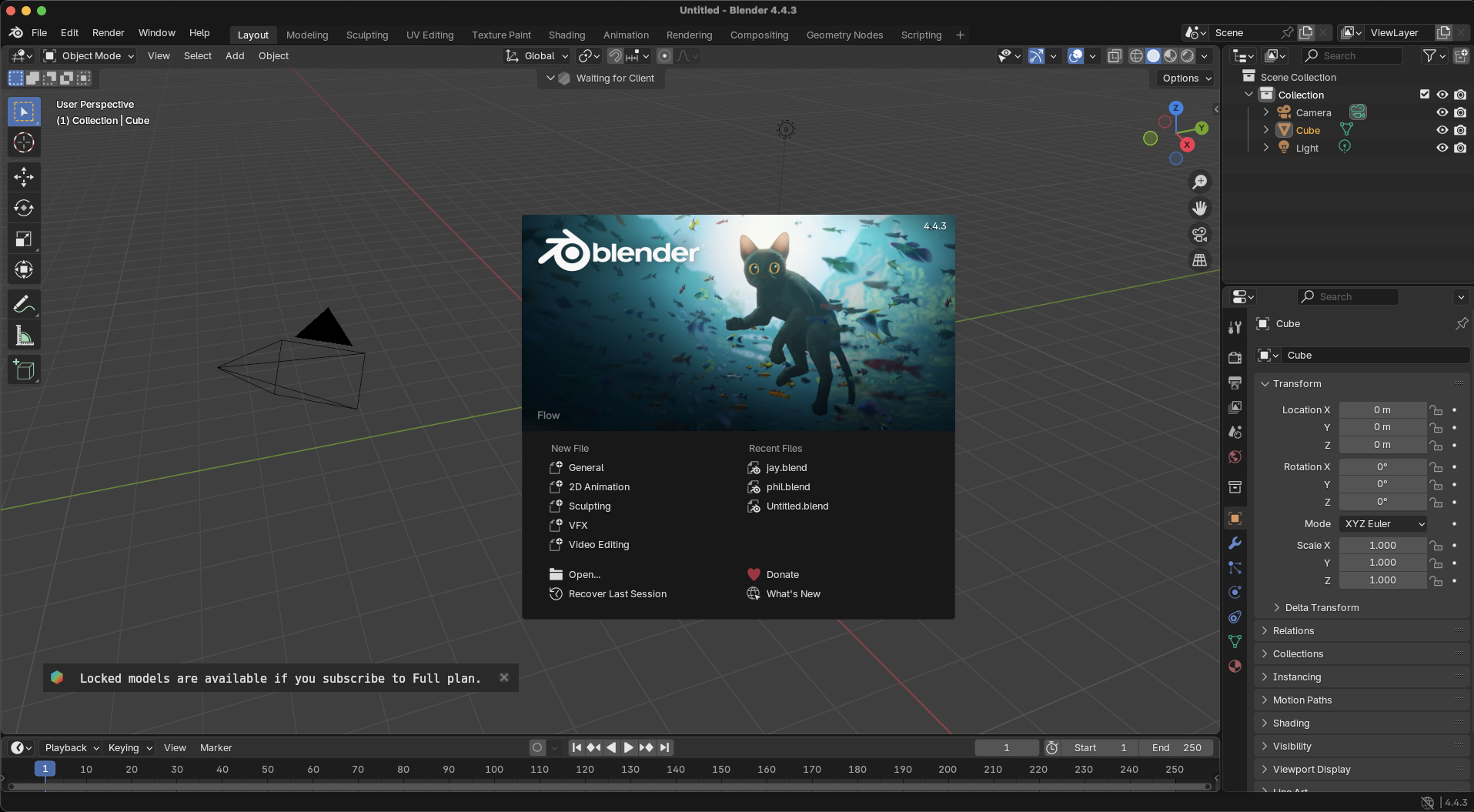

  • Open Blender on your computer

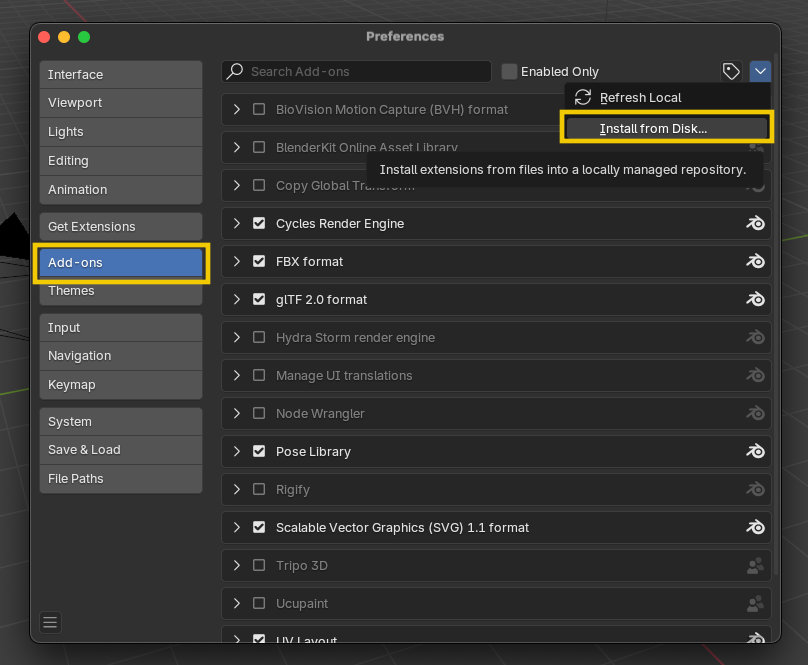

  • Navigate to Edit → Preferences
  • Select the "Add-ons" tab

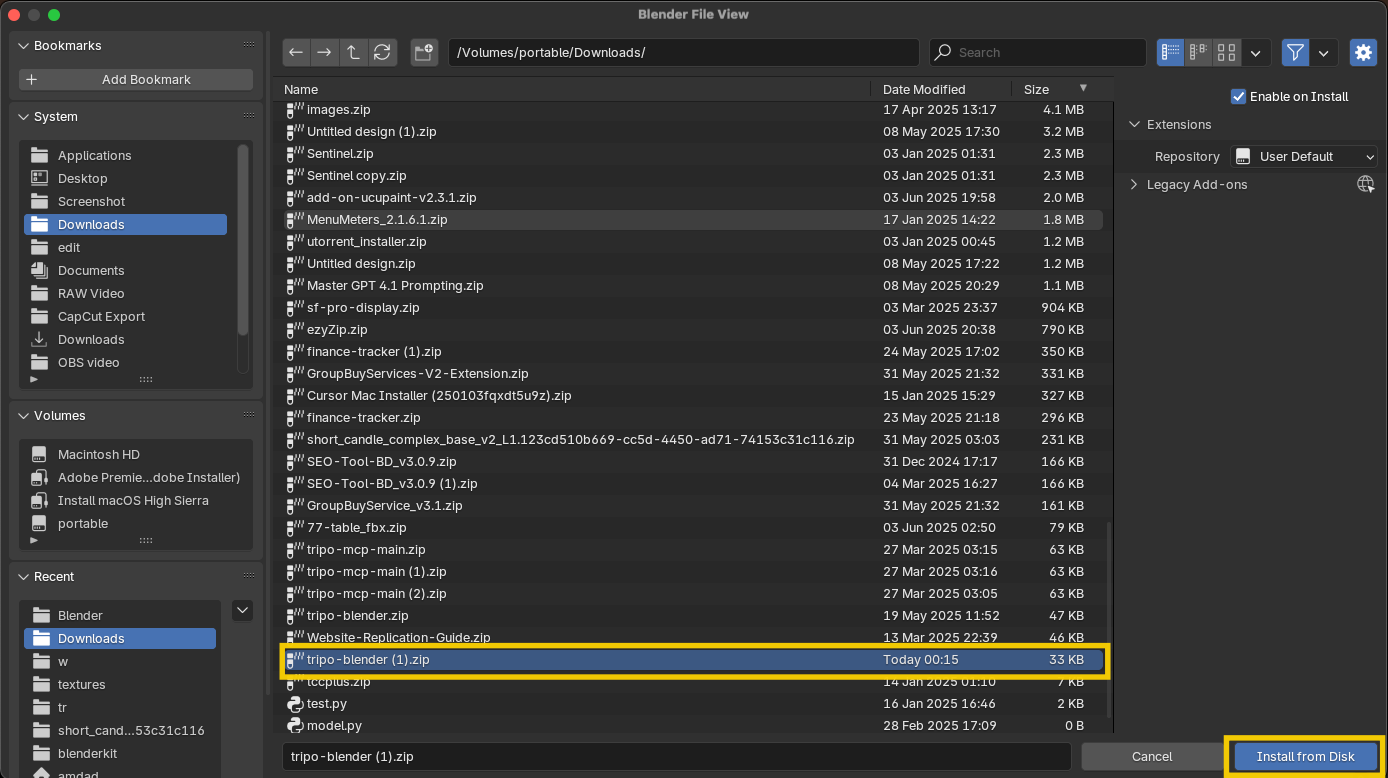

  • Click "Install from disk" and select the downloaded Tripo plugin file (.zip)
  • After installation, enable the add-on
  • Important: Do not unzip the file first; Blender needs the compressed file

Setting Up Your API Key

Before you can start generating models, you'll need to connect the plugin to your Tripo AI account.

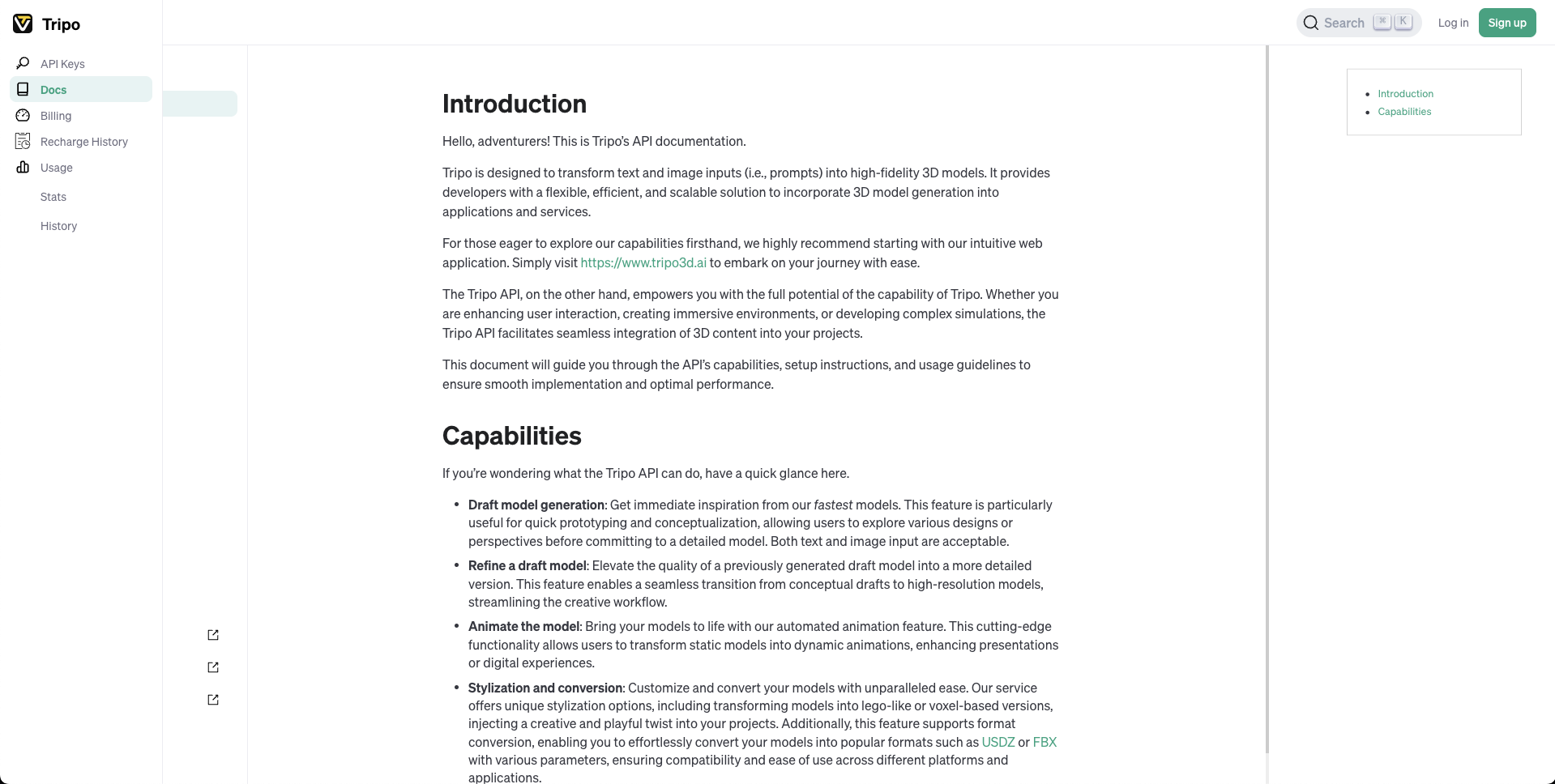

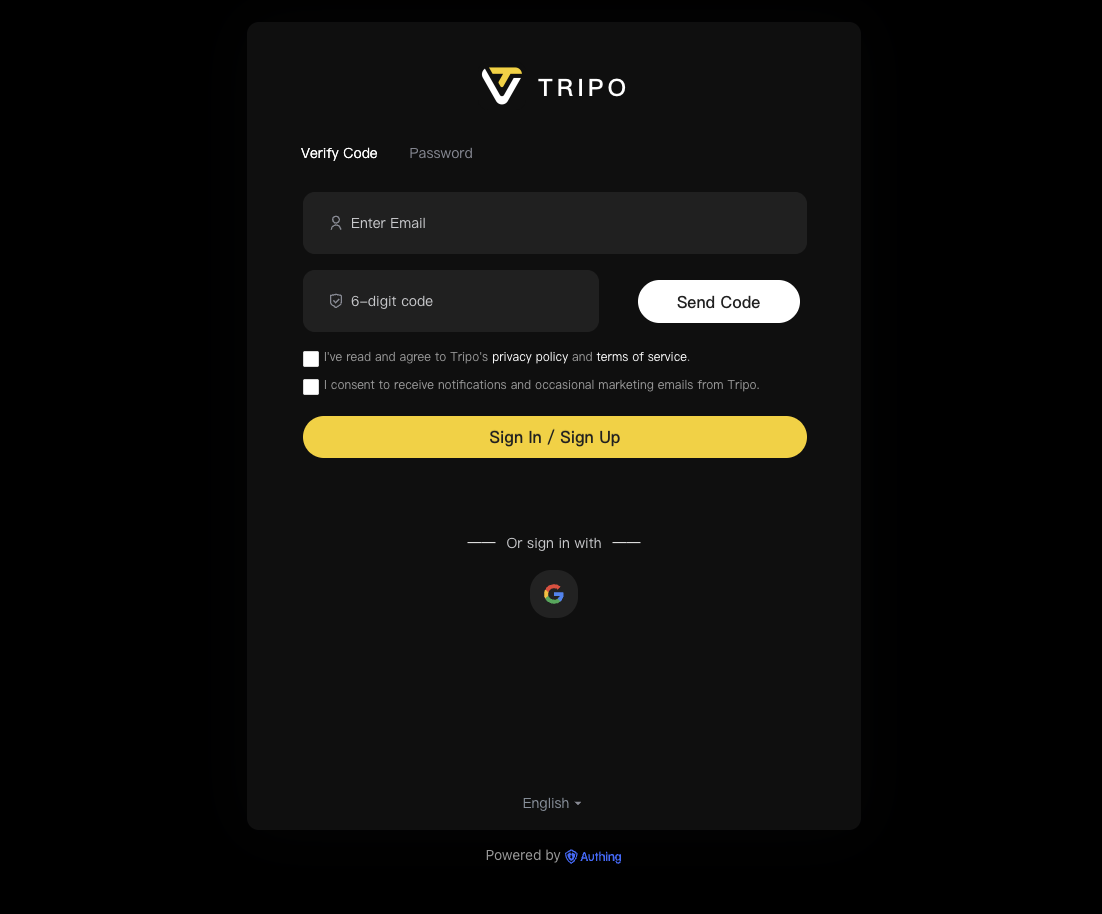

Creating Your Tripo Account and Getting API Key

  • Create or log in to your account (Google sign-up is available for quick access)

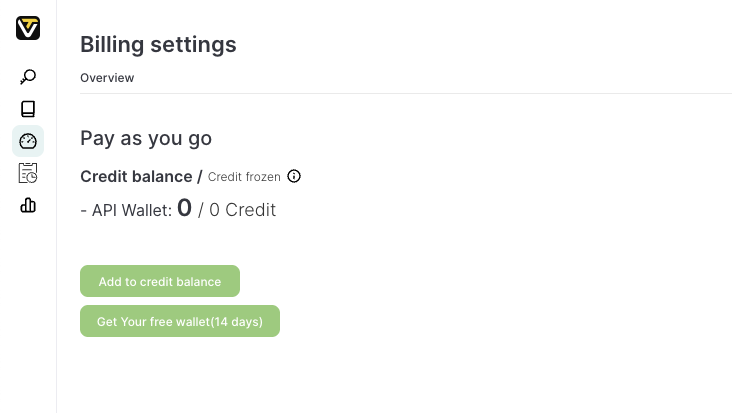

  • Navigate to the "Billing" section
  • Click "Get your free wallet" for a 14-day trial with 600 credits (no credit card required)

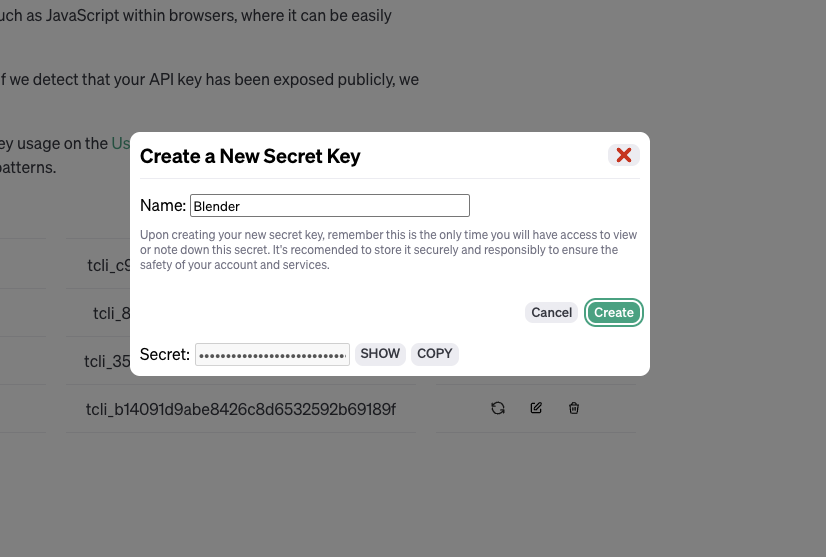

  • Go to the "API Keys" section
  • Click "Create New Secret Key"
  • Give your key a name (e.g., "Blender Plugin") and click "Create"
  • Copy your newly generated API key

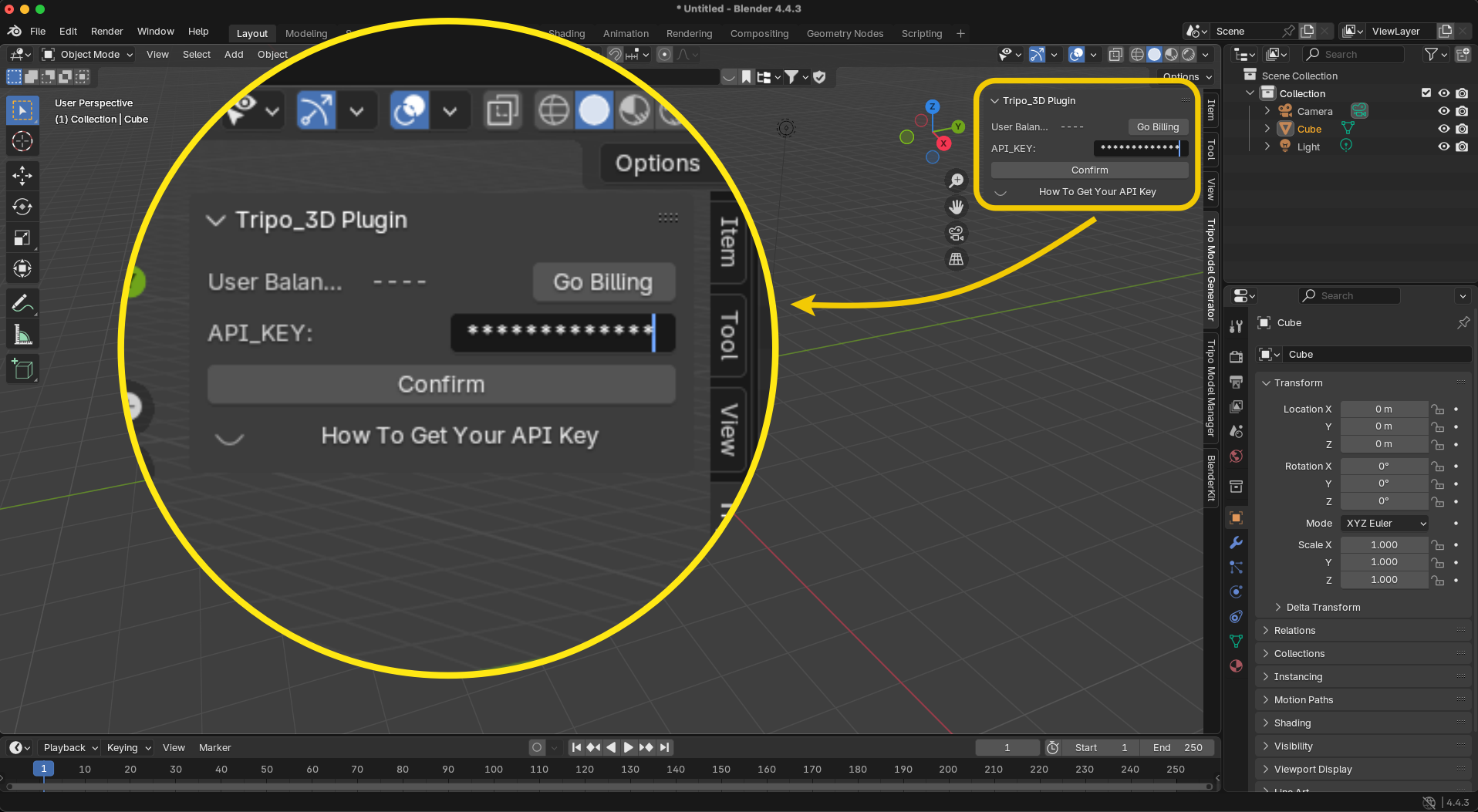

Connecting the API Key to Blender

  • In Blender's 3D viewport, press "N" to open the side panel
  • Select the "Tripo AI Model Generator" tab
  • Find the API key input field
  • Paste your API key and click "Confirm"
  • If successful, you'll see your credit balance displayed

Creating Your First 3D Model with Tripo AI

Now that your plugin is set up, let's explore both main methods of generating 3D models.

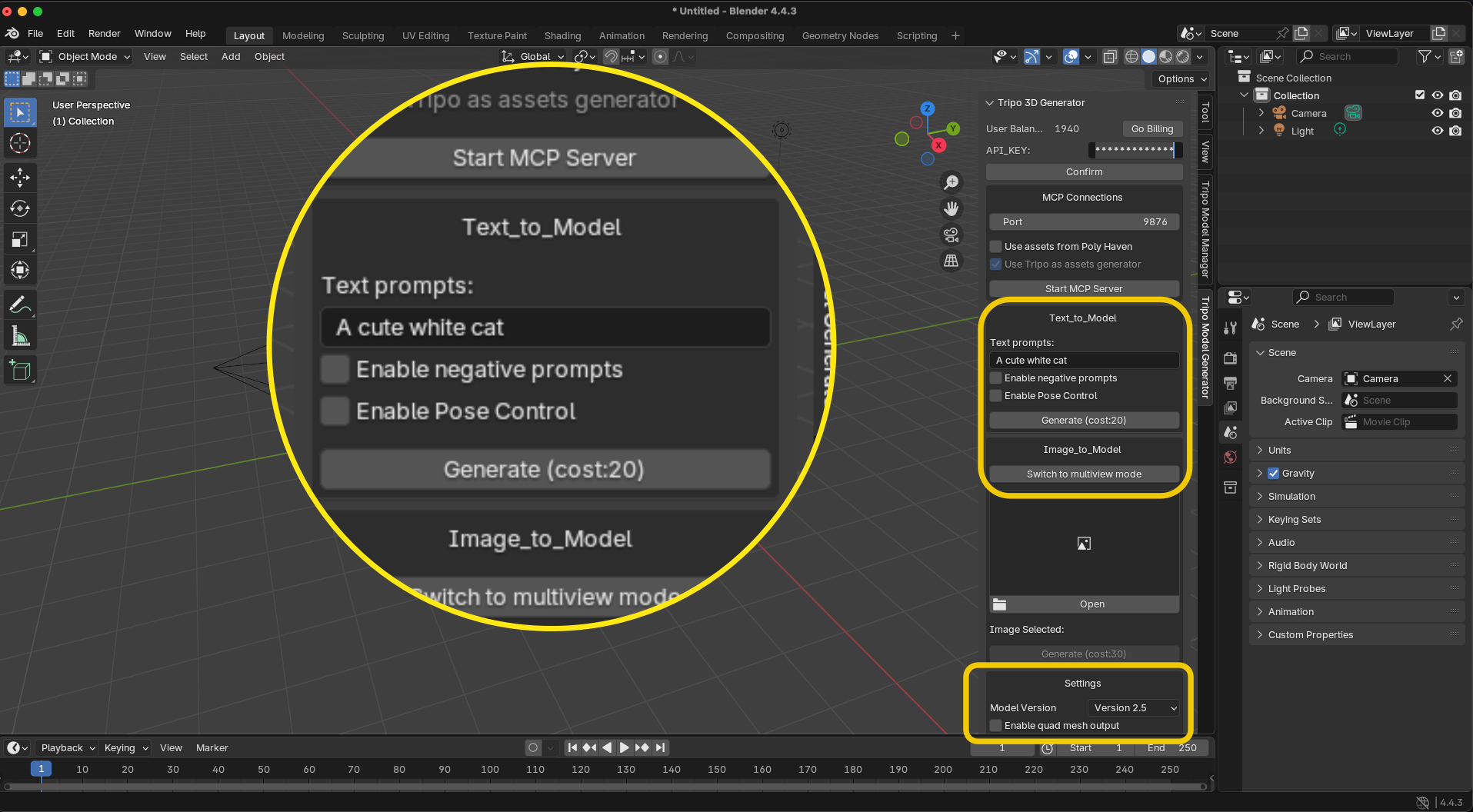

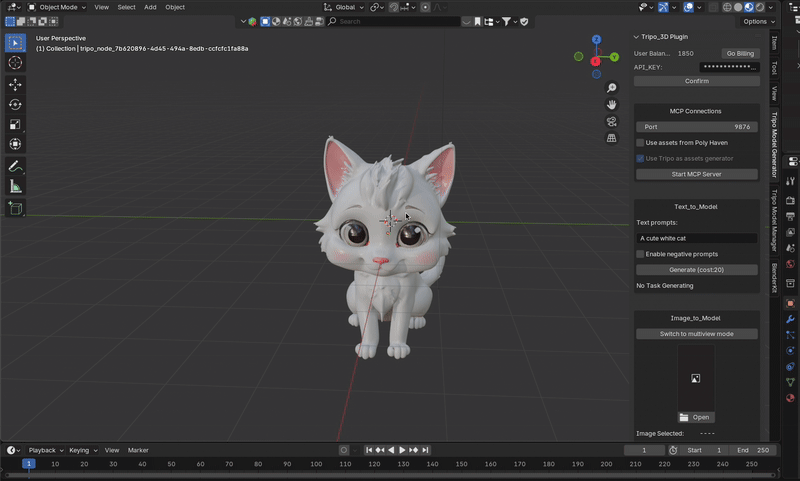

Method 1: Text-to-3D Generation

The ai 3d model generator can create detailed models from text descriptions:

  1. In the Tripo panel (press "N" to open it), locate the text input field

  2. Enter a detailed description of your desired model

    • Example: "A cute white cat "

  1. (Optional) Add negative prompts by clicking "Negative Prompt" and entering terms to avoid

  2. Select your preferred model version (latest is recommended for best quality)

  3. Configure additional settings:

    • Quad mesh: Produces cleaner geometry
    • Custom face limit: Controls model complexity
    • Style options: Choose from various aesthetic styles

  4. Click "Generate."

  5. Wait 10-20 seconds for your model to appear in the Blender viewpor

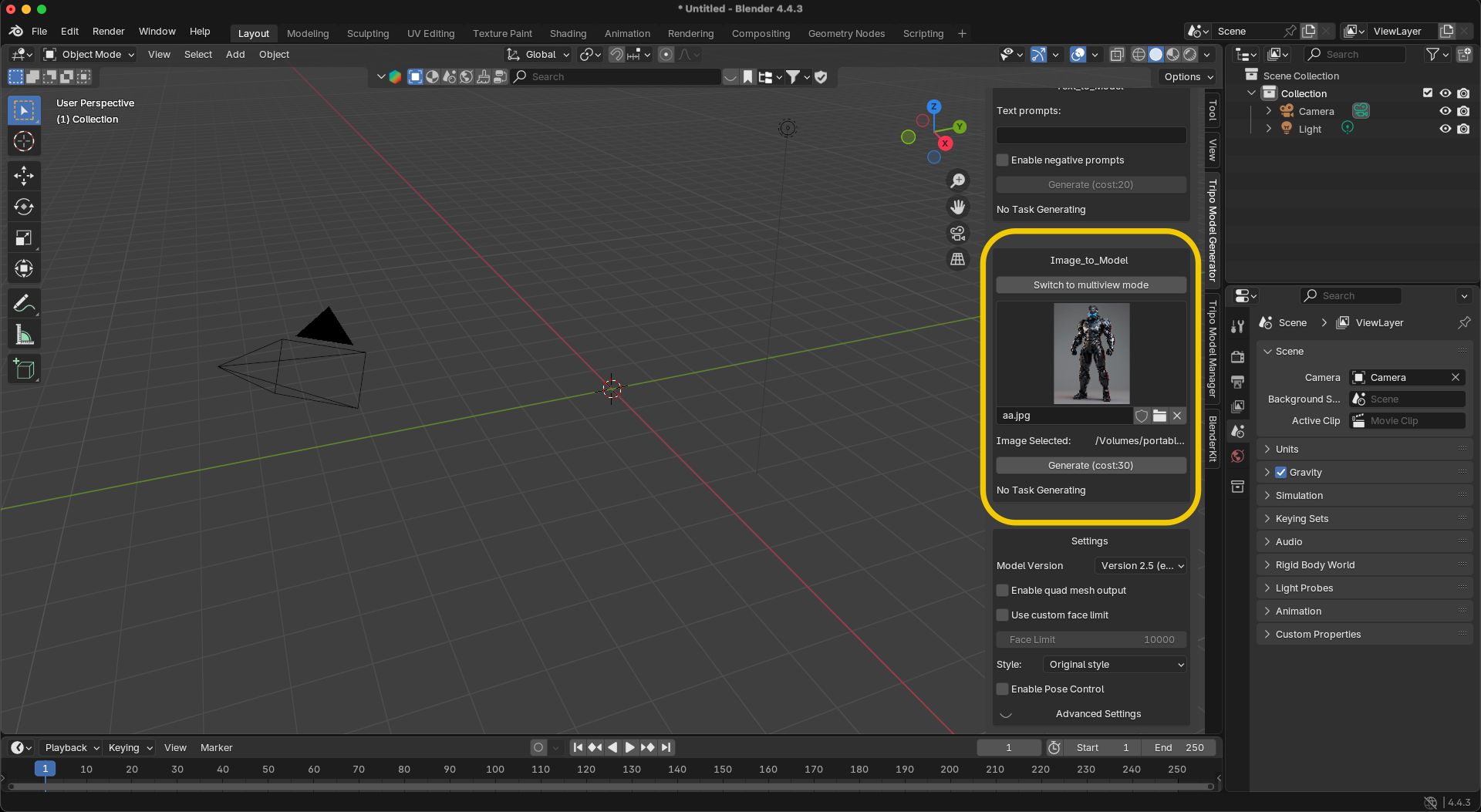

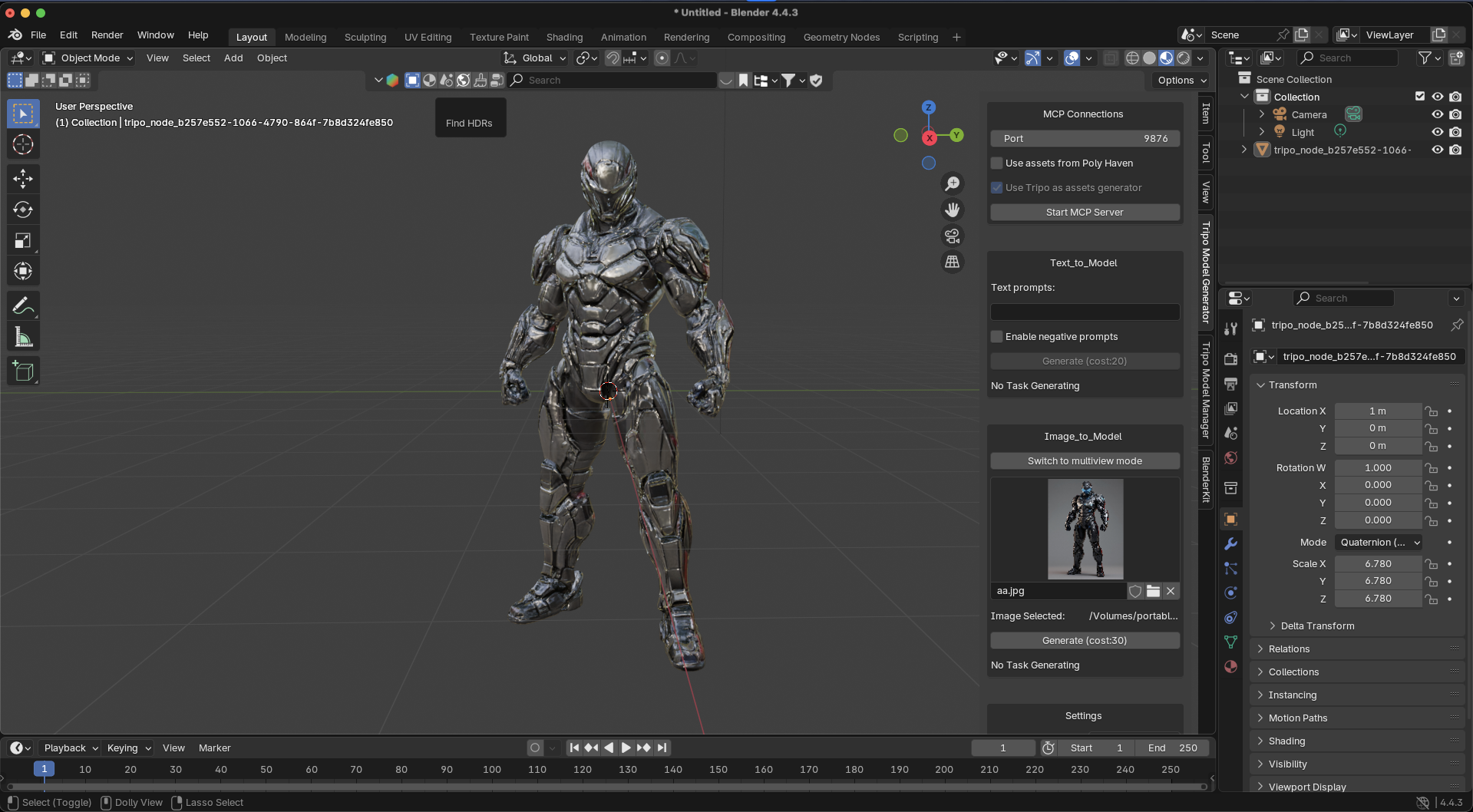

Method 2: Image to 3D Conversion

The plugin's powerful image to 3D capabilities can transform 2D images into detailed 3D models:

  1. Scroll down in the Tripo panel to find the Image to 3D section
  1. Click "Open File" to select your reference image
    • Pro tip: Use clear images with good lighting and minimal background clutter
  1. Configure generation settings as needed
  2. Click "Generate"
  3. Within 10-20 seconds, your image to 3D conversion will appear in Blender

Advanced Techniques for Better Results

Crafting Effective Text Prompts

The quality of your text descriptions directly impacts your results:

  • Be specific and detailed: Instead of "a chair," try "an elegant mid-century modern lounge chair with walnut frame and tufted blue velvet upholstery"
  • Mention materials: Specify textures, materials, and finishes
  • Include style references: Terms like "photorealistic," "cartoon style," or "steampunk aesthetic" guide the AI
  • Use negative prompts: Exclude unwanted elements with negative prompts like "not blurry, no distortion"

Optimizing Image to 3D Conversion

Get the best results when using the image to 3D feature:

  • Use high-quality images: Clear, well-lit photos produce better models
  • Remove backgrounds: Images with isolated subjects work best
  • Try multiple angles: For complex objects, prepare several reference views
  • Adjust complexity settings: Higher face counts preserve more detail but require more processing power

Post-Processing AI-Generated Models

Your AI 3D model generator creates initial models quickly, but some refinement usually improves the final result:

Geometry Cleanup

  1. Enter Edit Mode (Tab key) with your model selected
  2. Remove duplicate vertices: Select All (A) then Mesh → Clean Up → Merge By Distance
  3. Fix non-manifold geometry: Select All, then Mesh → Clean Up → Fill Holes

Optimizing for Performance

  1. Apply a Decimate modifier to reduce polygon count while preserving detail
  2. For game assets, retopologize for efficient edge flow
  3. Use the Quad remesh option in the plugin for cleaner topology from the start

Texturing and Materials

  1. Check UV maps for stretching or overlap

  2. For models with vertex colors, bake these to texture maps:

    • In the Shader Editor, create a new Image Texture
    • In Render Properties, switch to Cycles and use Bake → Diffuse → Color Only
    • Save the resulting texture

  3. Enhance materials in the Shader Editor for more realistic results

Troubleshooting Common Issues

Model Generation Fails

  • Verify your API key is entered correctly
  • Check your credit balance in the Tripo platform
  • Ensure you have a stable internet connection
  • Try simplifying your prompt or using different settings

Plugin Not Appearing

  • Confirm the add-on is properly installed and enabled
  • Restart Blender after installation
  • Check Blender's console for error messages

Poor Model Quality

  • Refine your text prompt with more specific details
  • For image to 3D conversion, use clearer reference images
  • Try different model versions or style settings
  • Increase face count for more detailed models

Conclusion: Harnessing the Power of AI in Your 3D Workflow

The Tripo AI Blender Plugin represents a significant advancement in 3D content creation, bringing the power of AI 3D model generation directly into your favorite 3D software. By following this guide, you'll be able to leverage both text-to-3D and image to 3D capabilities to dramatically speed up your modeling workflow.


Remember that while the ai 3d model generator creates impressive initial models very quickly, professional-quality assets often benefit from your artistic touch through post-processing. The combination of AI efficiency and human creativity yields the best results.


Ready to transform your 3D modeling process? Visit Tripo AI today and experience the future of 3D creation!
